Introduction
The company operates 3 PLC fully intelligent medium-frequency quenching & tempering heat treatment production lines, 3 centerless turning, chamfering, straightening and burnishing bright bar production lines, 9 centerless grinding bright bar production lines, as well as fully automatic drawing & plating production lines. At present, our annual capacity reaches 100,000 tons for heat treatment, 100,000 tons for turning processing, 50,000 tons for precision grinding and chrome plating, and 10,000 tons for finished anchor bolts.
-
Main Products
1. Steel for energy industry (power bolts, petrochemical fasteners, tension rods for hydrogen storage tanks);
2. Steel for automotive components (piston pins, rack steel, stabilizer bars, motor shafts);
3. Steel for infrastructure construction (wear-resistant bars, steel tie rods, fasteners, springs);
4. Steel for engineering, agricultural machinery and coal mining machinery (drive shafts, pin shafts, piston rods);
5. General equipment parts (columns, lead screws, guide rails, linear optical shafts).

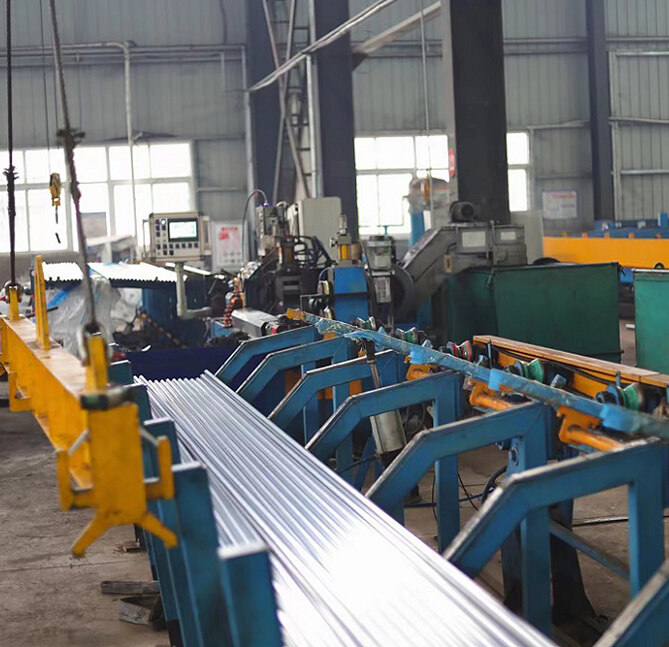

Centerless Turning Lathe

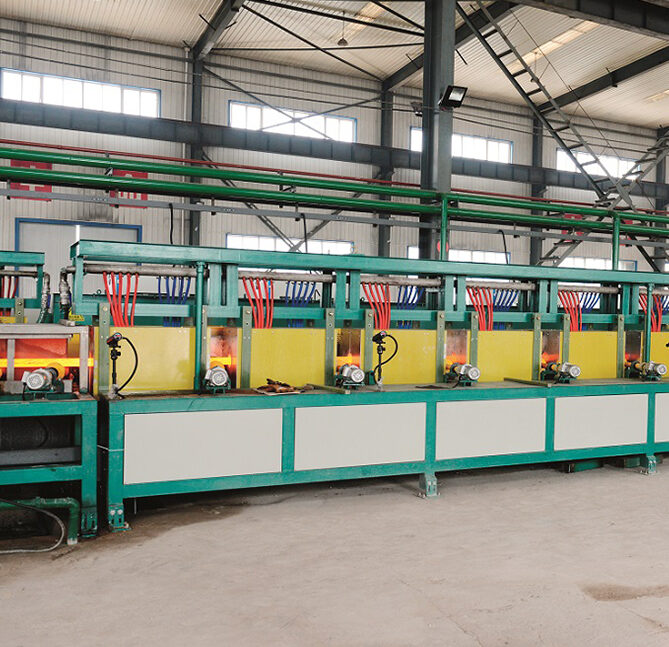

Medium-Frequency Quenching Heating Furnace

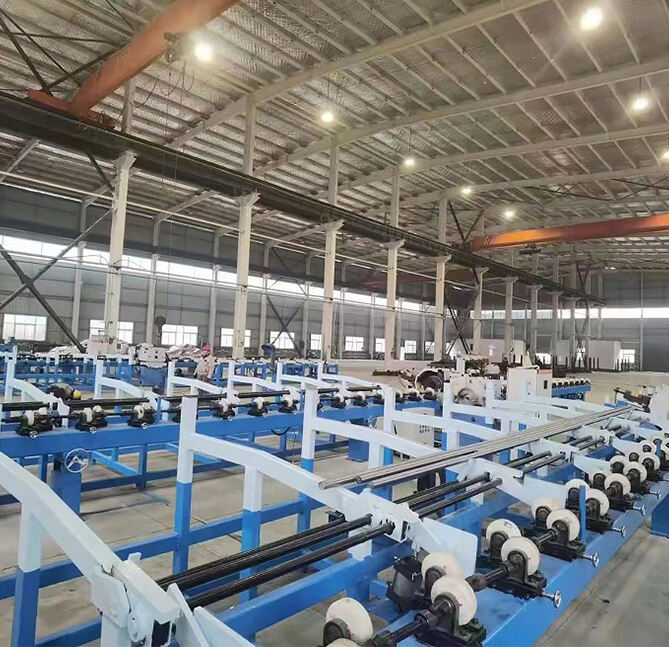

Grinding Machine

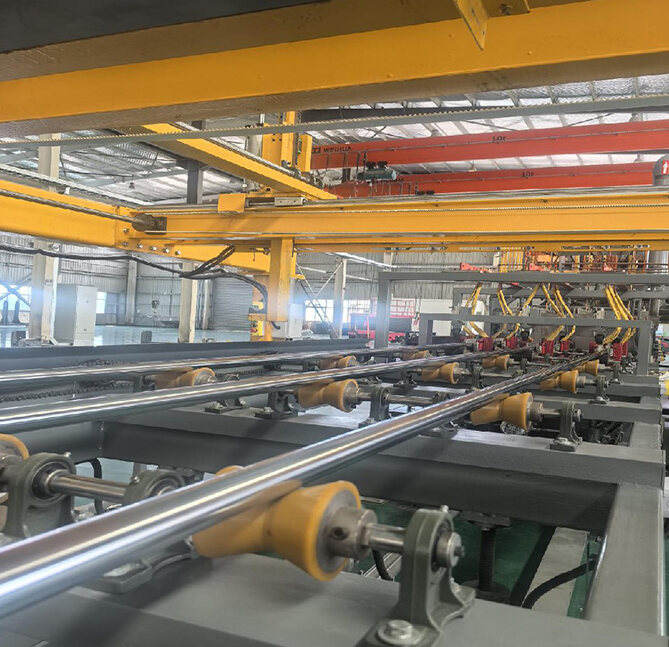

Fully Automatic Drawing & Coating Production Line
|
Steel Category |
China Standard |
USA Standard |
EU Standard |
Japan Standard |
|
HighQuality Carbon Structural Steel |
2065 2065Mn |
1020 1035 1045 1055 |
C22E C45E C55E |
S20C S35C S45C S55C |
|
Alloy Structural Steel |
16Mn 2050Cr 2050CrMo 2040CrMnMo 2050CrNiMo 16MnCr5 |
4137(H) 4140(H) 4145(H) 4340 |
16MnCr5 20MnCr5 41Cr4 42CrMo4 |
SCM435 SCM440 SCM420 |
|
Bearing Steel |
GCr15 |
|
100Cr6 |
SUJ2 |
|
Spring Steel |
65Mn 60Si2Mn 60Si2CrVAT |
1066 |
60Si7 |
SUP6 |
|
FreeCutting Steel |
F45MnVS 38MnVS6 |
|
|
Note: Customized targeted processing is available to meet customers’ special requirements.

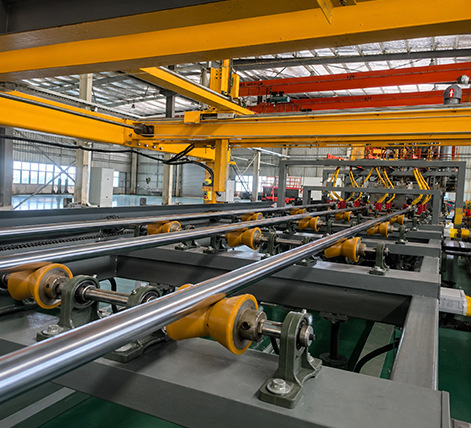

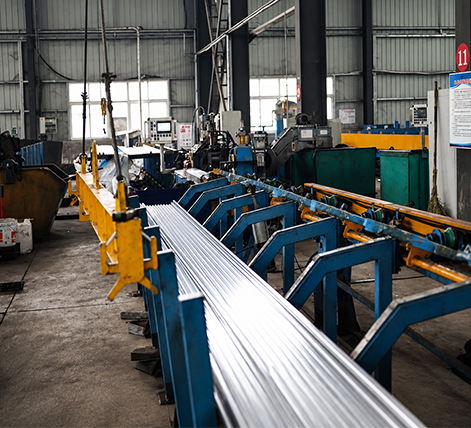

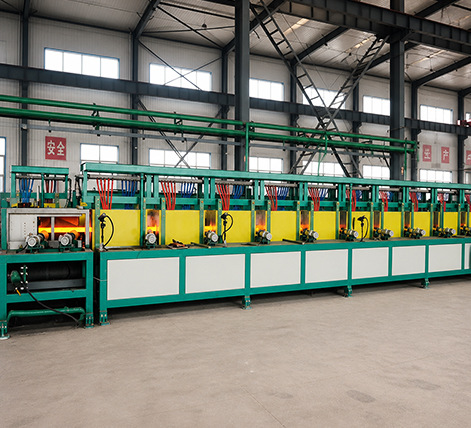

Heat Treatment: Quenching & Tempering, Normalizing, Tempering; Ø9–120 mm, length 3.5–16 m-Bright Bars: Peeling, Grinding, Polishing; Ø10–170 mm, length 3.5–13 m-Chrome Plating: Continuous Chrome Plating Production Line; Ø20–120 mm, length 3.5–9 m.
Delivery Conditions: Annealed, Normalized, Quenched & Tempered, Centerless Turned, Straightened & Burnished, Chamfered, Thread Rolling, Centerless Ground, Surface Chrome-Plated.
